Ticket app that creates pdf ticket with QR-code

! The project is not yet completed and still is in the development phase. In the next releases, it is planned to decompose the ticket-payment service into occasion-service and ticket-order-service and add a message broker for implementing a saga pattern. I also plan to separate qr-code generation into a separate service and add functionality to read QR-codes. In addition, I plan to launch the project on AWS and replace CircleCi to Jenkins. !

Languages and Tools:

Spring Boot, Spring Cloud, Hibernate Jpa, Lombok, MySql.

Service	Port	CI
ticket-payment	8084
pdf-generator	8083
currency-exchange	8082
bank-simulator	8081

Hibernate JPA was used instead of Spring Data JPA for learning purpose. Before app launch you must have JDK 11 and MySql server installed on your machine.

ticket-payment:

Execute to create Database:

mvn ticket-payment [liquibase:update]

Endpoints:

Models:

Within selection, the api will calculate the ticket price according to the seat and date.

GET localhost:8084/api/v1/occasions/1000000001

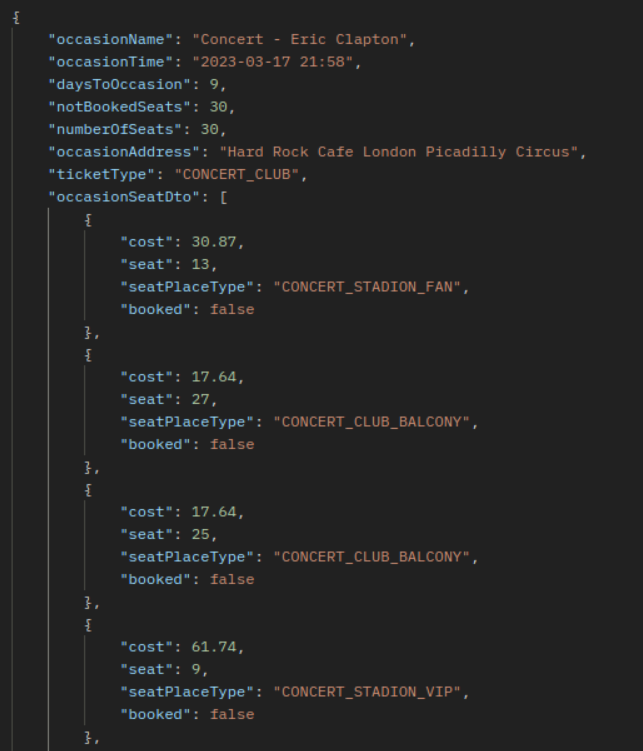

Result (reduced for readability):

You can use filters and pagination to retrieve data you need:

GET localhost:8084/api/v1/occasions?ticket_type=TRAIN_INTERCITY&ticket_type=CONCERT_STADION&occasion_seats_from=30&size=3&page=0&sorting_order=DESC&sorting_field=occasionId

Result:

Fetch available filters:

localhost:8084/api/v1/occasions/filters

Result:

With selected Occasion you can create a pdf ticket with a qr-code. Default currency is "usd" but you can use another currency instead of "usd" for example "uah". In this case service will make a request to currency-exchange server and it will convert the currency you specified into "usd" according to the current exchange rate. e.g.:

POST localhost:8084/tickets


{
    "customerTicketDto": [{
	 "firstName": "firstName2",
	 "lastName" : "lastName2",
	 "country"  : "Fiji",
	 "seat" : 10,
	 "amount" : "51.00",
	 "seatPlaceType" : "CONCERT_CLUB_BALCONY"
	}],
    "ticketType" : "CONCERT_CLUB",
    "occasionAddress" : "Hard Rock Cafe London Picadilly Circus",
    "occasionDate" : "2023-11-22 22:10",
    "occasionName" : "Concert - Eric Clapton",
    "bankAccount": 2548870,
    "currency" : "usd"
}

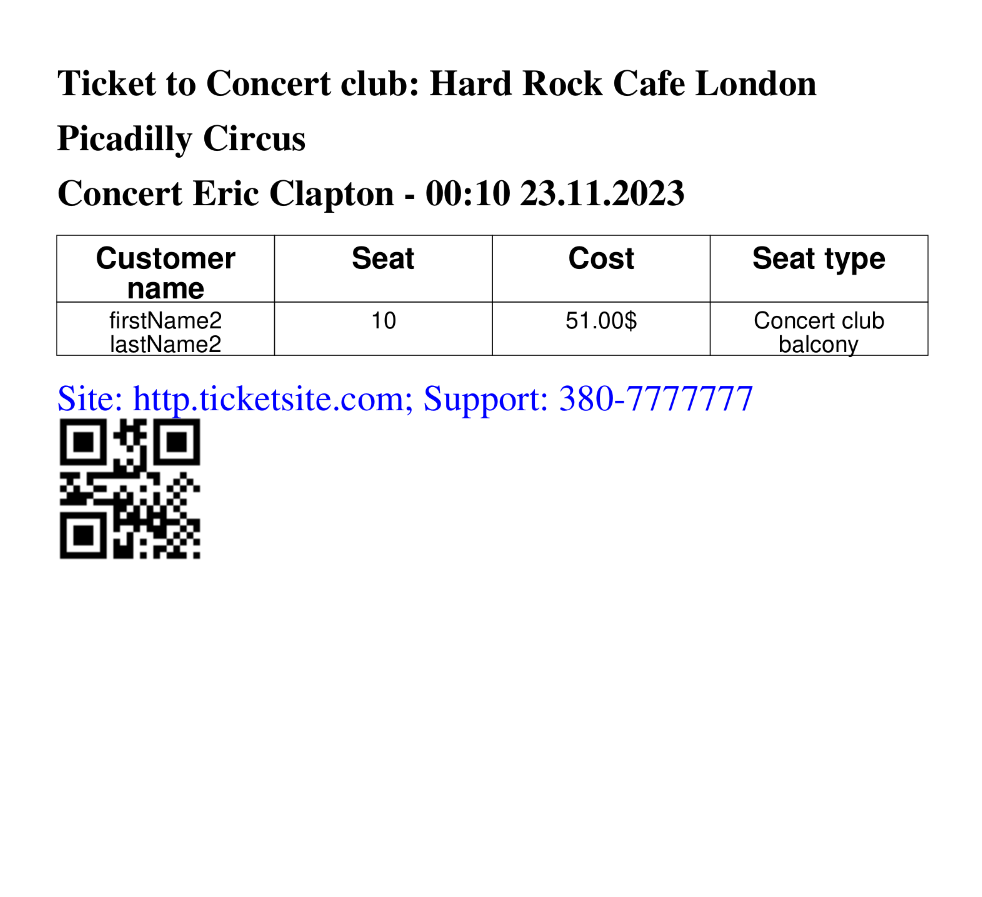

Api will return created TicketOrderId. It can be used generate pdf tiket with QR-code:

GET localhost:8084/api/v1/tickets/PDF/3000000001

ticket-payment service will read TicketOrder from DB and will perform a request to pdf-generator to generate a pdf ticket for every Customer.

pdf-generator:

Endpoints and Models:

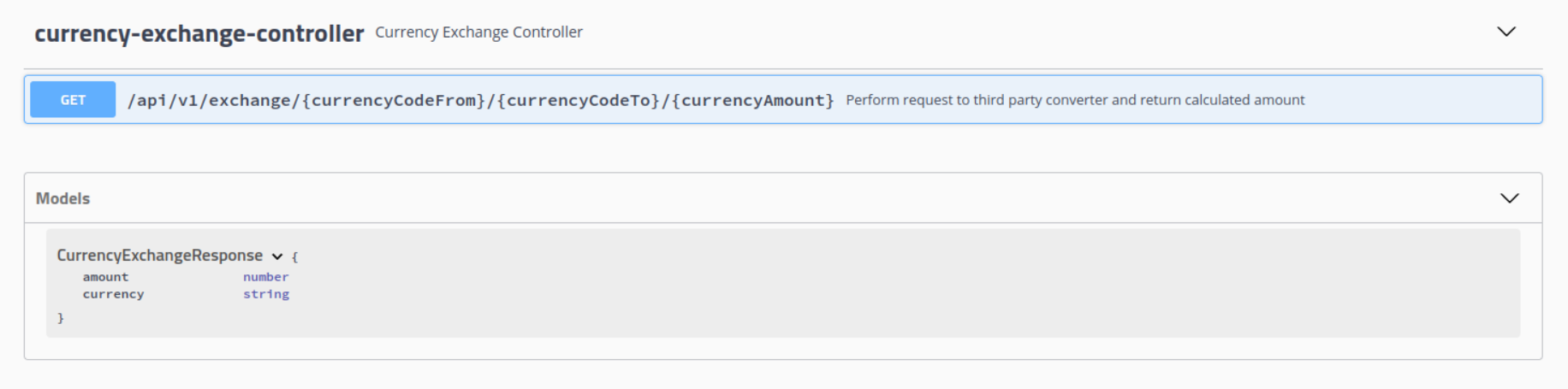

currency-exchange:

Endpoints and Models:
