Below is the public status board for our repos. Repos maked with 🔒 are private with public documentation.

Some examples for how to use MediaX and the GXA-1 mission computer. Open and free to use in your application/s.

The Jetpack and Linux4Tegra board support package for the Jetson Orin AGX GXA-1.

This library (compliant to ISO/IEC 14882 C++17) implements RFC 4421 RTP (Real Time Protocol) Payload Format for Uncompressed Video and RFC 3984 for H.264 video as mandated by the UK MoD as part of DEF STAN 00-082 (VIVOE) uncompressed RTP video streaming protocol for real time video. If you are not familiar with the Generic Vehicle Architecture (DEF STAN 00-23) and VIVOE then you can read more here.

Documentation is available to view on Github Pages.

Is Astute-Systems diagnostics and debug tool (build in MediaX) for Generic Vehicle Architecture (GVA) and Generic Soldier Architecture (GSA) systems. Libraries conform to DEF-STAN 00-082 for real time video streaming.

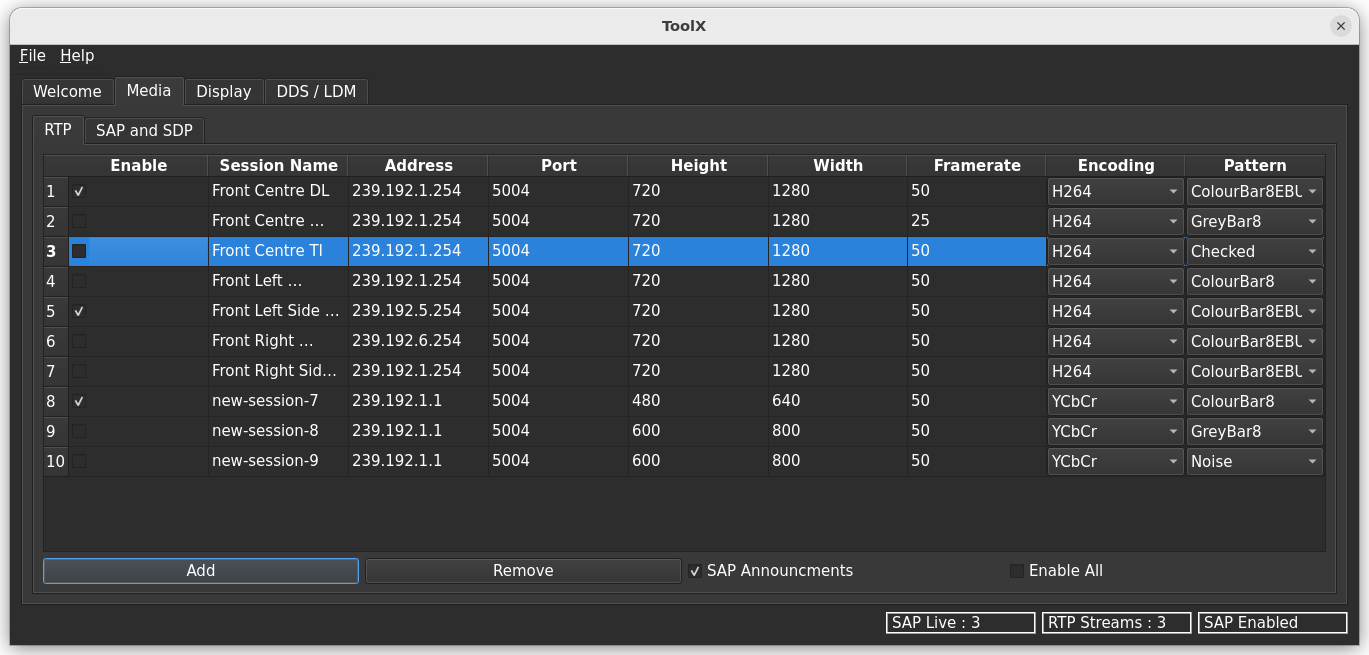

ToolX is a GUI tool for developer to use whiles developing their MediaX enabled applications.

Documentation is available to view on Github Pages

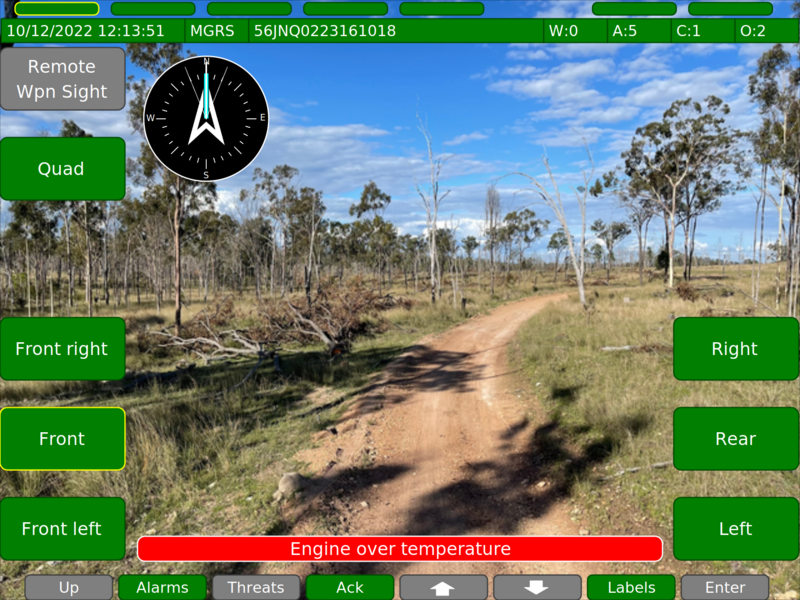

The project includes an reference implementation of the GVA (Generic Vehicle Architecture) Human Machine Interface (HMI) to DEF STAN 23-009. This is meant as a designed for testing different live video sources and working with streaming protocols and does not implement functionality defined in the GVA Land Data Model (LDM). Its primarily used to demonstrate various video streaming pipelines and control mechanisms for real time video processing and situational awareness.

Documentation is available to view on Github Pages

Our TAK library stands out with its robust and modular architecture, allowing you to extend its capabilities effortlessly. Whether you’re looking to integrate custom data processors or add new data sources, our library provides the tools you need to expand and tailor it to your specific requirements.

Seamless Data Ingestion from Multiple Sources Experience seamless data ingestion like never before. Our TAK library supports a wide array of data sources, ensuring you have the most comprehensive situational awareness:

• AIS (Automatic Identification System): Track maritime vessels with precision.
• ADS-B (Automatic Dependent Surveillance-Broadcast): Monitor aircraft movements in real-time.
• OpenDrone ID: Keep an eye on drone activities and enhance your airspace management.
• NMEA (National Marine Electronics Association): Integrate marine navigation and sensor data.
• Radar Tracks from Cambridge Pixel: Harness the power of high-fidelity radar data for superior tracking and situational awareness.
• Various Online Sources: Leverage the wealth of open source intelligence data available online to enrich your applications.

Documentation is available to view on Github Pages

This is an implementation of the GVA Land Data Model and is only available on a commercial basis. Please reach out for more details.

Documentation is available to view on Github Pages

The embedded OS for deployment. Signed and trusted SystemsX includes everything you need for a minimal secure, trusted operating system on which to deploy your application. Includes communications fabrics to enable massive scalable architectures and seemless interoperation with military systems for land, sea and air. Fully tested on the NVIDIA Jetson Orin AGX see GXA-1.
