AI Engineer

This is a tool I'm building for myself to:

• be a fun way to experiment with new AI techniques
• create a AI Coding Assistant that is hyper tailored to my preferences and working style

It only runs locally and directly reads and writes files on my files system.

Cool Stuff

Chat with your codebase

• Context selections can be manual or automatic
• Supports rendering Mermaid diagrams, chartjs charts, and syntax highlighted code blocks.
• Great for getting familiar with a codebase or documenting a new feature.

AI Powered Code Tasks

1. Enter a raw task description
2. AI will classify the task as feature, bug, documentation, refactor, etc...
3. Based on the work item type, it will use a predefined template to generate a detailed task specification.
4. Manually edit and tweak the specification
5. Generate an a coding plan
   1. Coding plan is syntax highlighted with a special diff syntax to help understand the changes
   2. There is a Apply in Cursor button that will launch the project in Cursor and execute the Coding Plan using Cursor Composer.

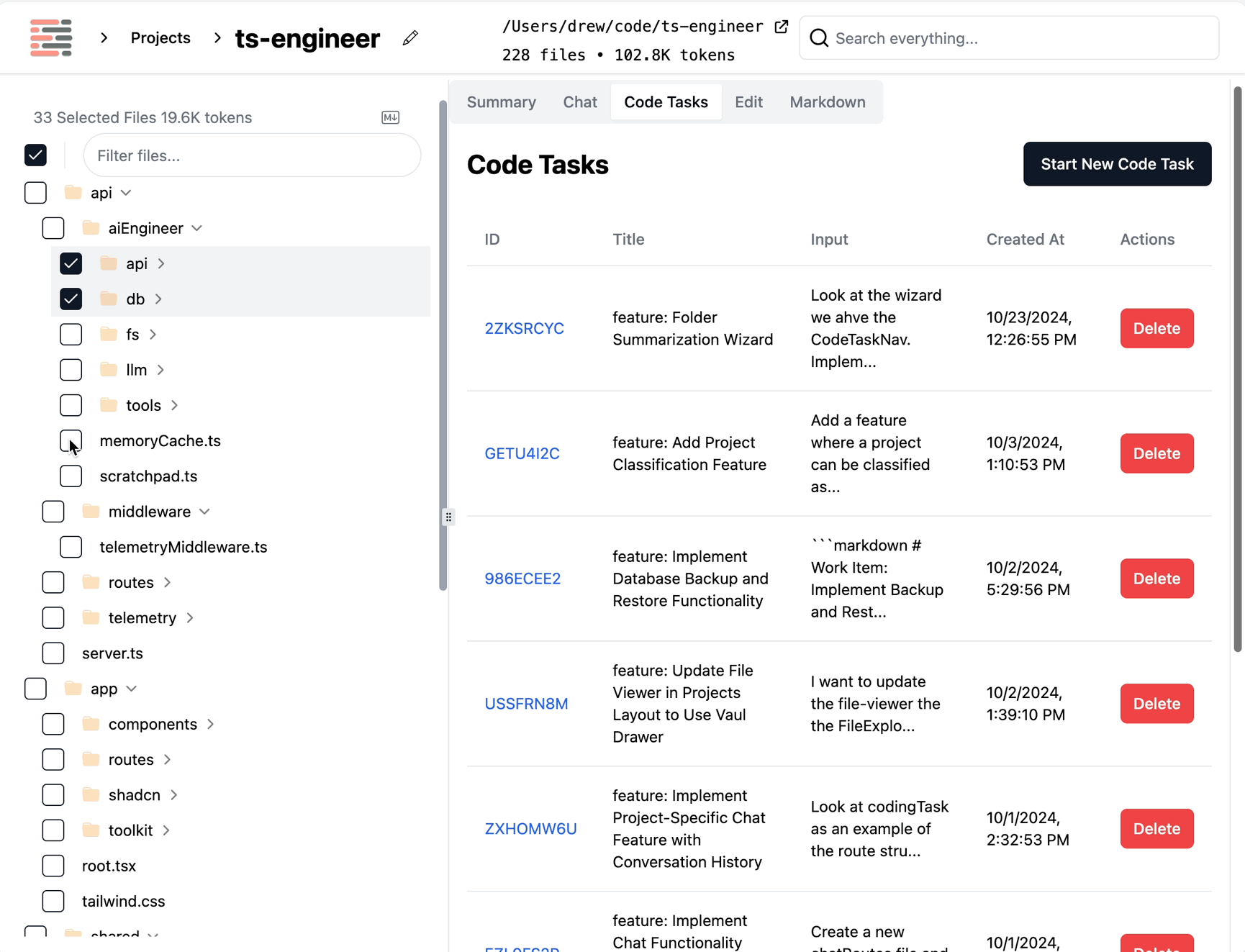

Surgical context selection

A custom File Explorer allows me to manually select exactly which files I want to use as context for my Chat, Coding Task.

• I can see exactly how many tokens I have selected.
• The selection is automatically used for Chat and Coding Tasks
• The active selection is always concatenated into single giant block of markdown containing the file contents. Perfect for then pasting into ChatGPT or Claude or any other third party tool.

Note

if there are no files selected, the AI will dynamically choose which files are relevant via a mixture of vector search and parsing the file tree.

Project classification for model selection

Azure OpenAI vs OpenAI vs Anthropic vs Deepseek vs Groq vs Gemini etc...

We can decide based on the privacy classifcation of the project. For example, work projects get routed through my company's Azure OpenAI instance.

Cross Project Semantic Code Search

• Semantic search - fulltext search + vector search
• Uses PGVector + tsvector on a local PGLite Postgres DB
• The local flexiblity of SQLite with the power of Postgres

Tech Stack

Name	What is it?
React	A JavaScript library for building user interfaces.
Remix	A framework for building React applications with server-side rendering.
Bun	A fast JavaScript runtime like Node.js.
Hono	A small, simple, and ultrafast web framework for the Edge.
OpenAI	A library for interacting with OpenAI's API.
Drizzle	A TypeScript ORM that's lightweight and SQL-first.
PGlite	An embedded PostgreSQL database that runs in Node.js and the browser.
Langfuse	A tool for managing and visualizing AI model telemetry.
Shiki	A syntax highlighter for code blocks.
Zod	A TypeScript-first schema declaration and validation library.
Madge	A tool for generating visualizations of module dependencies.

Project Structure

Path	Purpose
/api	Contains server-side logic, including API endpoints and middleware.
/api/aiEngineer/api	Houses API-related functionalities for AI engineering tasks.
/api/aiEngineer/db	Database-related files, including schema definitions and migrations.
/api/aiEngineer/fs	File system utilities for handling project files and directories.
/api/aiEngineer/llm	Logic for interacting with large language models (LLMs).
/api/routes	Defines the routing for various API endpoints.
/api/telemetry	Telemetry and logging functionalities for monitoring and diagnostics.
/app/routes	Frontend routes for the application, organized by feature.
/app/toolkit	Utility functions and components shared across the application.
/tasks	Scripts for various development tasks, such as migrations and backups.

Screens

Name	Route (Path & Filename)	Purpose
Home	/ app/routes/_index.tsx	Redirects to the projects page.
Projects	/projects app/routes/projects._index/route.tsx	Displays a list of projects.
New Project	/projects/new app/routes/projects.new.tsx	Allows users to create a new project.
Project Details	/projects/:id app/routes/projects.$id/route.tsx	Displays details of a specific project.
Project Summary	/projects/:id/summary app/routes/projects.$id.summary/route.tsx	Shows a summary of the project.
Project Chat	/projects/:id/chat app/routes/projects.$id.chat._index/route.tsx	Allows users to chat about the project.
Project Code Tasks	/projects/:id/codeTasks app/routes/projects.$id.codeTasks._index/route.tsx	Displays code tasks related to the project.
Project Edit	/projects/:id/edit app/routes/projects.$id.edit/route.tsx	Allows users to edit project details.
File Viewer	/projects/:id/file-viewer app/routes/projects.$id.file-viewer.tsx	Displays the contents of a specific file in the project.
Markdown Viewer	/projects/:id/markdown app/routes/projects.$id.markdown.tsx	Shows a markdown view of selected files.
Global Search	/search app/routes/search/route.tsx	Provides a global search functionality across projects.

Data Fetching

The project utilizes Remix for both server-side rendering and client-side interactions. Data fetching is handled through API routes defined in the api/routes directory. These routes interact with the database using a custom database layer built on pglite.

UI to Backend Connection

1. Client-Side Fetching: Components in the app/routes directory use Remix's useLoaderData and useActionData hooks to fetch data from the server. For example, the ProjectsTable component fetches project data from the server and displays it in a table format.

2. Server-Side Rendering: Remix handles server-side rendering for initial data fetching. The server processes requests and returns pre-rendered HTML to the client, which is then hydrated with client-side JavaScript.

3. Database Access: The backend interacts with the database through the db module in api/aiEngineer/db. This module provides functions to query and manipulate data in the database.

4. No Authentication Provider: The codebase does not explicitly mention any authentication provider integration.

Step-by-Step Walkthrough of a Typical User Request

1. User Interaction: A user interacts with the UI, such as clicking a button or submitting a form.
2. Client-Side Request: The client-side component uses Remix's hooks to send a request to the server.
3. Server-Side Processing: The server receives the request and processes it using the appropriate API route.
4. Database Query: The API route interacts with the database to fetch or update data.
5. Response to Client: The server sends the response back to the client, which updates the UI accordingly.

Sequence Diagram

sequenceDiagram
    participant User
    participant UI as app/routes/projects._index/ProjectsTable.tsx
    participant Loader as app/routes/projects._index/route.tsx<br>Remix loader
    participant API as api/routes/projectRoutes.ts<br>API route
    participant DB as api/aiEngineer/db/projects.db.ts<br>Database

    User->>UI: Interacts with the project list
    UI->>Loader: Fetches project data
    Loader->>API: Calls API to get projects
    API->>DB: Queries project data
    DB-->>API: Returns project data
    API-->>Loader: Returns response
    Loader-->>UI: Updates state with project data
    UI-->>User: Renders updated project list

Loading

Architecture

• Frontend - React/Remix: The client-side application is built using React and Remix, providing a modern web interface. It is hosted on the user's machine and interacts with the backend server via HTTP requests.
• Backend - Hono Server: The server-side application is built using the Hono framework, handling API requests and serving the frontend. It is hosted on the user's machine and connects to the database and external APIs.
• Database - PGLite: A SQLite-like database is used for storing project data, code tasks, and conversations. It is hosted locally and accessed by the backend server for data persistence.
• External APIs - AI SDKs: The application integrates with external AI services like OpenAI and Anthropic for generating code and answers. These services are accessed via their respective SDKs and APIs.
• Bun Runtime: The project uses Bun as the runtime for executing scripts and running the server, providing a fast and efficient environment for development and production.

graph TD
  subgraph Local Environment
    A[Frontend - React/Remix] --> B[Backend - Hono Server]
    B --> C[Database - PGLite]
    B --> D[External APIs - AI SDKs]
  end
  subgraph External Services
    D --> E[OpenAI]
    D --> F[Anthropic]
  end
  G[Bun Runtime] --> A
  G --> B

Loading
