Mupen-Lua Universal GUI

This framework helps you create a GUI for your lua script.

It provides many built-in controls, themes and styles which help you fulfill your requirements and has patterns encouraging clean, legible code.

ℹ️ Examples

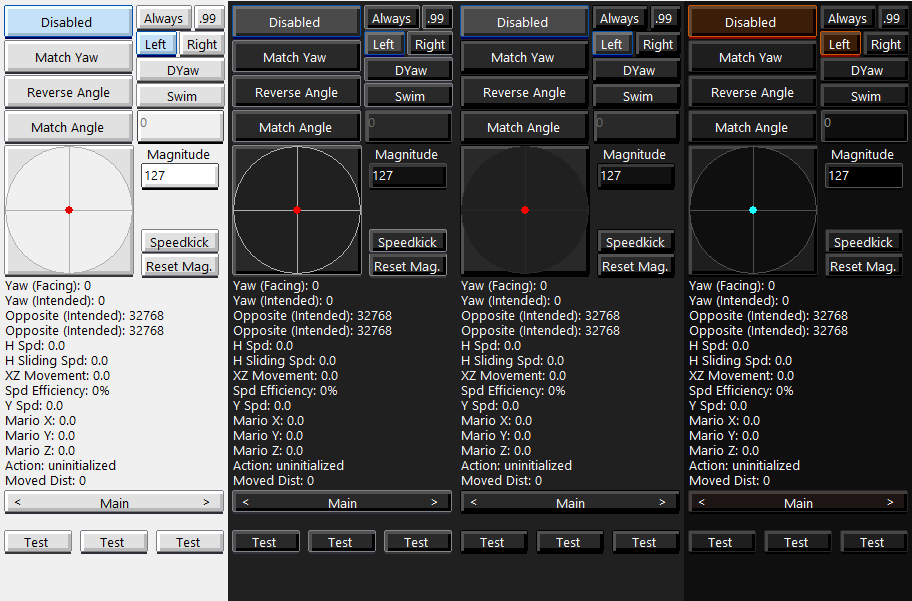

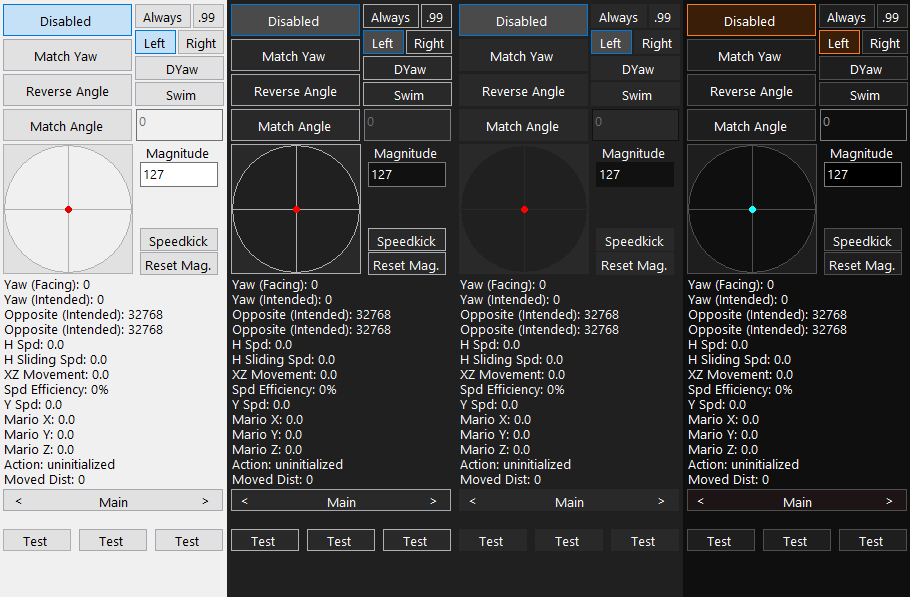

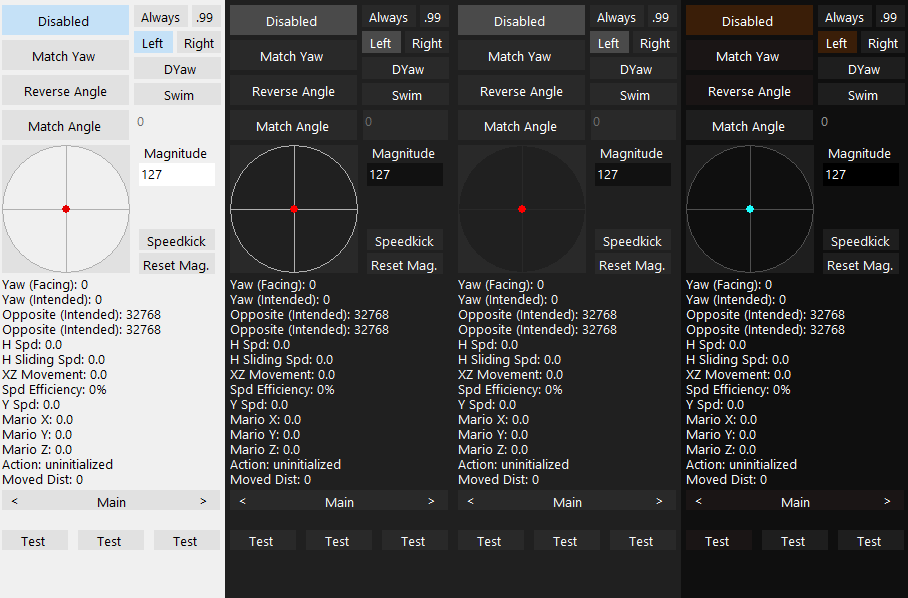

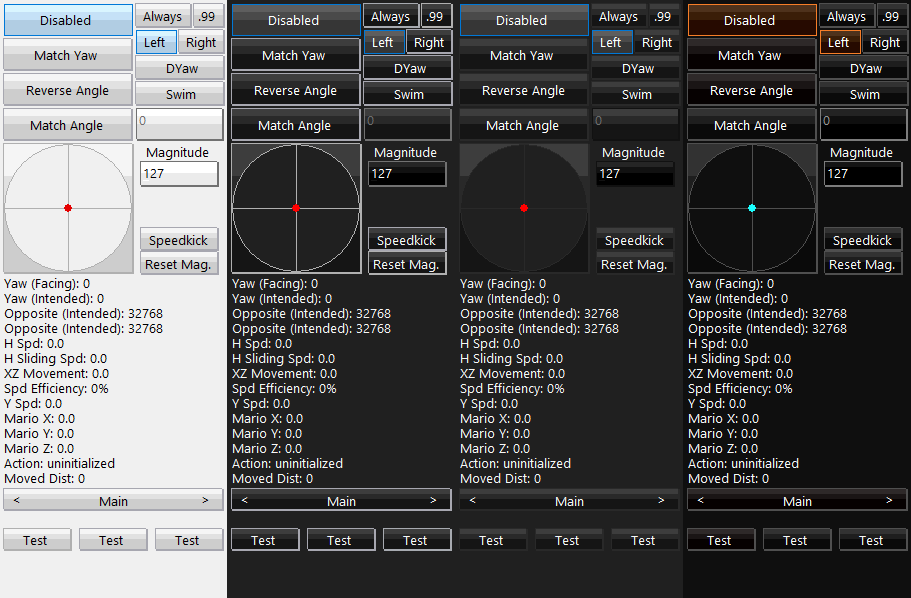

Example of built-in themes

A ComboBox control which sets the theme

💨 Quickstart

Adding a new scene

Create a new scene using the Scene constructor and pass in nil

local mainScene = Scene:new(nil)

Adding controls to your scene

Add a controls dictionary to the created scene by using its AddControls(t) method

mainScene:AddControls({

YourButton = Button:new(
     mainScene, -- The scene containing the button
     1, -- The button's index in the scene. For each control, increase it by 1 heading downwards
     nil, -- The keyboard key associated with the button (nil disables keyboard interaction)
     20, -- X
     20, -- Y
     128, -- Width
     64, -- Height
     "Hello World", -- Text
     function(o) -- Interaction callback, o is reference to button
          print(o.Text)
     end)
})

Starting up the Scene Manager

After defining your scenes and their respective controls, you need to signal the startup to SceneManager

SceneManager.Initialize(

    { -- Dictionary of your scenes
        Main = mainScene,
    },

    persistentScene, -- A scene which is always active and doesn't suppress other scenes (Optional)

    GDIRenderer:new(), -- Instance of a rendering backend
    Windows10Styler:new() -- Instance of a styler
)

SceneManager.ChangeScene(Scenes.Main) -- Switch to main scene and thereby signal start to SceneManager. You're done!

✨ Features

• Scenes (Tabs)
  • Switch with one function call
  • Can define non-scene (persistent) controls for navigation OR scene-linked controls
• Theming you can define...
  • Colors
  • Margins
  • Sizes
  • Alignment
• Styling you can define...
  • High-level Drawing
  • Decorations
• Compatibility
  • Automatically scales controls depending on resolution

	Button	ToggleButton	TextBox	Slider	Joystick	ComboBox	CarrouselButton
Animations	✔️	✔️	✔️	✔️	✔️	✔️	✔️
Transitions	✔️	✔️	➖	➖	✔️	✔️	❌
Keyboard interaction	✔️	✔️	✔️	❌	❌	✔️	✔️
Read-only mode	❌	❌	✔️	✔️	✔️	❌	❌
Miscellaneous			Supports numerical, alphanumerical mode		Configurable magnitude ellipse

📐 Arhitecture

This framework is split into two major code sections:

• Framework (Internal)
• User (External)

The user writes code inside the User directory. This code includes implementation of their domain logic and definition of scenes.

The user mustn't modify any code outside of the User directory and must interact with the framework over predefined functions, not mutating data manually (e.g.: ✔️ RendererManager.SetCurrentRenderer(GDIRenderer:new()) ❌ CurrentRenderer = GDIRenderer:new())

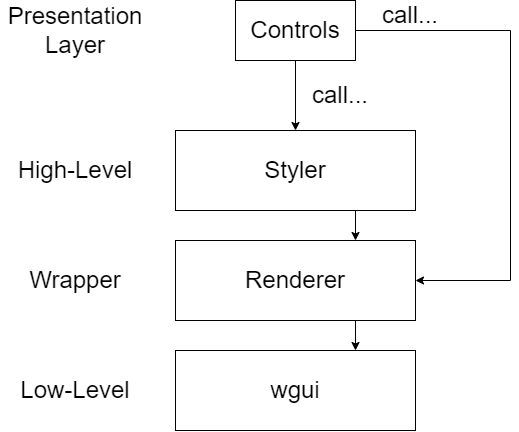

Rendering process and relations
