Arduino Press Buttons
Only arduino pro micro have Gamepad native support, if you want to get it recognized as a controller within the game, make sure to use arduino pro micro. Otherwise only SimHub will see inputs

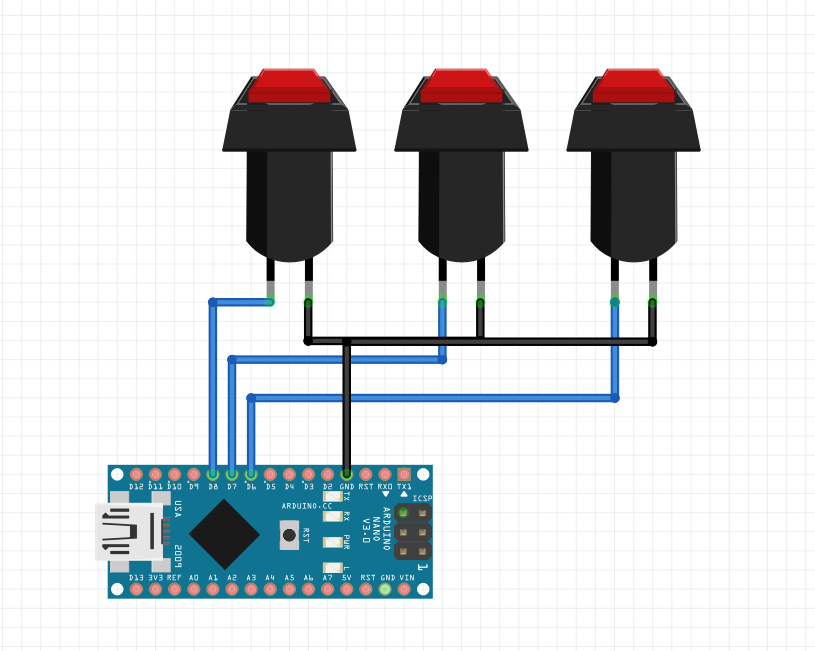

Any momentary switch will do the trick.
On nano avoid A6, A7 as they don't have digital capability. And D13 due to arduino on board led
This wiring can be useful when using illuminated buttons for instance. (This wiring is available starting from Simhub 7.4.0)
In this wiring you need a 10kohms resistor

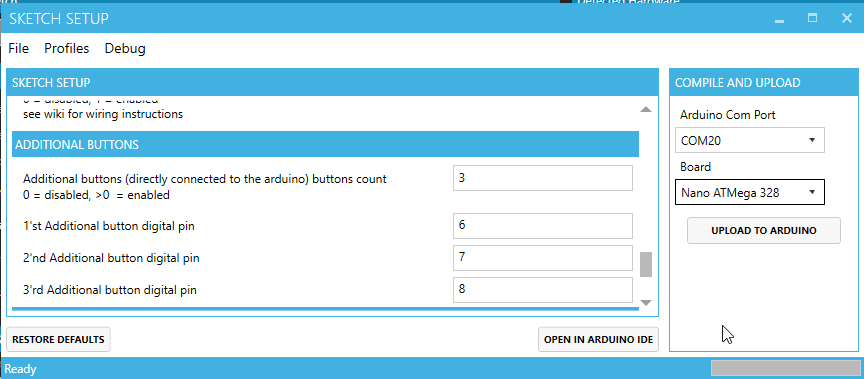

Set how many buttons are wired, pins and the wiring mode for each one then upload the sketch,
Buttons can be used in simhub for any arduino board, or be seen as Gamepad for arduino micro (when enabling the option)
