COMP 851 Project: Option 1

Assignment:

The first is a data integration which provides lists of users as potential leads for purchasing of Widgets. Every day a new list of leads are deposited on S3 by a marketing partner, and the leads must be processed in order to determine how they should be contacted. The existing lead integration hub is a RabbitMQ cluster, and the Office of Architecture has decreed that this integration must maintain that approach. In addition, existing marketing integrations rely on a message routing approach to ship leads to different databases which support the sales teams.

• If a lead is in the United States: then they should be put into a PostgreSQL database table named leads.
• If they are not and they have a known CC number, then they should go into a database table named high_priority.
• and otherwise all leads should be deposited into a text file.

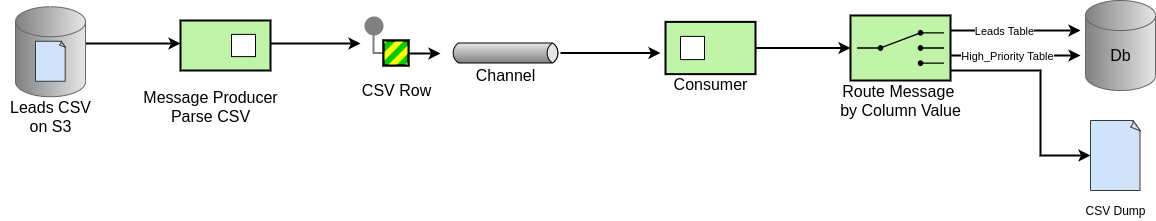

The Plan:

1. The leads.csv will exist in an S3 bucket. The CSV's name will then be provided to the a message producer as an argument and read in with Boto.
2. The RabbitMQ producer will declare a message channel with Pika and begin parsing through the CSV file's rows.
3. Each Row will be mapped to a Python dictionary and sent as a message over the channel.
4. A RabbitMQ consumer will declare a queue and be consuming any incoming messages.
5. Once a message is received, the consumer will determine where to send the data by looking at the message's columns.
6. If it is determined that the message goes to a PSQL table, the consumer will send the message to a Psycopg2 function along with the desired table name in order to insert the data.
7. If it is determined that the message will be dumped, the consumer will either create a CSV file or append the message to an existing file.

Installation:

Dependencies: Conda & PostgreSQL

1. Clone the Git repo
2. Initialize your Conda environment off the .yml file:
   $ conda env create -n leads_project -f environment.yml
3. Create a new PSQL db (I used project851):
   postgres=# create database project851;
4. Change the database.ini file to suit your PSQL database's information:

   [postgresql]
   database=project851
   user=postgres


5. Activate your Conda environment:
   $ conda activate leads_project
6. Run init_db.py to create your database tables or reset data:
   $ python3 init_db.py
7. Add the csv file to your S3 bucket:
   aws s3 cp ./leads.csv s3://""/""/project_leads/leads.csv
8. Adjust the S3 bucket name in producer.py:
   data = s3.get_object(Bucket='', Key=file_name)
9. Start the consumer:
   $ python3 consumer.py
10. Run the producer with your S3's csv as an argument:
    $ python3 producer.py ""/project_leads/leads.csv
11. Your database's two tables should now be populated with leads and a leads_dump.csv should reside in the directory:
    $ python3 producer.py ""/project_leads/leads.csv
12. Your database's two tables should now be populated with leads and a leads_dump.csv should reside in the directory:

project851=# select * from leads;
....
3535101196800233 | United States | 1968-07-17 | 80552.84 | Assistant Manager |
2016-02-03 01:02:30 | 944 | Kelly | Hanson | khansonq7@phpbb.com | | 250.78.86.48 | | United States | 1969-01-02 | | Account Executive |
2016-02-03 03:17:13 | 969 | Terry | Robinson | trobinsonqw@amazon.com | Male | 242.98.189.30 | 491129692288238190 | United States | 1969-09-13 | 264976.12 | Information Systems Manager |
(23 rows)

project851=# select * from high_priority;
....
2016-02-03 02:08:01 | 994 | Earl | Butler | ebutlerrl@posterous.com | | 209.157.200.68 | 3543989857454146 | Egypt | 1981-02-02 | | Speech Patholo
gist | ✋     
2016-02-03 00:33:54 | 998 | Stephanie | Sims | ssimsrp@newyorker.com | Female | 135.66.68.181 | 3548125808139842 | Poland | | 112275.78 |
2016-02-03 00:53:53 | 1000 | Alice | Peterson | apetersonrr@parallels.com | Female | 244.89.94.58 | 5602227843485236 | Nigeria | | 239858.7 |
(650 rows)

leads_dump.csv:
registration_dttm,id,first_name,last_name,email,gender,ip_address,cc,country,birthdate,salary,title,comments
2016-02-03T13:36:39Z,1,Donald,Lewis,dlewis0@clickbank.net,Male,102.22.124.20,,Indonesia,7/9/1972,140249.37,Senior Financial Analyst,
2016-02-03T18:29:04Z,3,Michelle,Henderson,mhenderson2@geocities.jp,Female,193.68.146.150,,France,1/15/1964,236219.26,Teacher,
2016-02-03T10:49:07Z,6,Frances,Adams,fadams5@123-reg.co.uk,Female,106.196.106.93,,Russia,3/27/1997,82175.77,Account Coordinator,
....
326 rows

Resources

RabbitMQ/Pika:
https://www.rabbitmq.com/tutorials/tutorial-one-python.html
Converting Python Dictionary to JSON and Sending w/ RabbitMQ:
https://stackoverflow.com/questions/34534178/rabbitmq-how-to-send-python-dictionary-between-python-producer-and-consumer
Setting up PSQL:
https://www.postgresqltutorial.com/install-postgresql-linux/
Inserting Python Variables into PSQL with Psycopg2:
https://stackoverflow.com/questions/62764057/how-to-insert-variable-data-into-postgresql
Dropping PSQL Tables with Psycopg2:
https://stackoverflow.com/questions/435424/postgresql-how-to-create-table-only-if-it-does-not-already-exist
Reading CSV File from S3 Bucket:
https://dev.to/shihanng/how-to-read-csv-file-from-amazon-s3-in-python-4ee9
Creating CSV Dump:
https://stackoverflow.com/questions/2363731/append-new-row-to-old-csv-file-python
Writing CSV Header to CSV Dump:
https://stackoverflow.com/questions/28325622/python-csv-writing-headers-only-once
