This project provides structural engineers a convinient tool while running pushover analysis. Once you input a capacity spectrum file and demand spectrum parameters, the tools will automatically do the iteration and find structure's performance point based on given parameters. You can also save the figure quickly

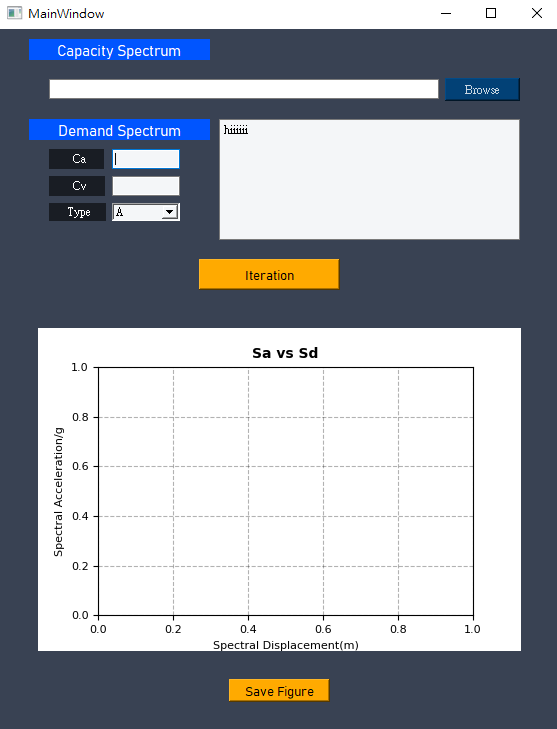

run starter.py, GUI will appear as shown below:

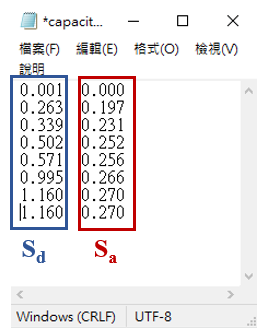

Browse the txt file that contains data of capcity spectrum. the first column of the file should be the spectral discplacement(Sd, unit:m) of the structure and the second one should be the spectral acceleration(Sa, unit:g) of the structure. As shown below:

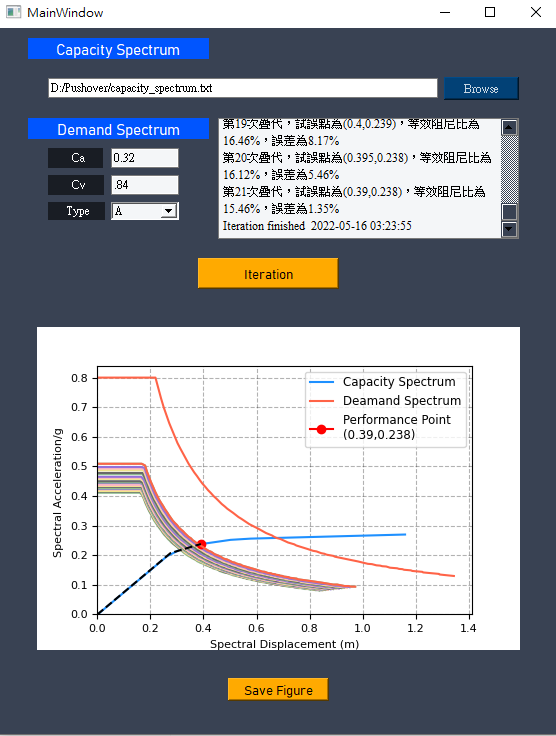

The Output is shown below. You can also save the figure by clicking the button below.
