Dropbox API Integration with Spring Boot

This project incorporates Dropbox API into a Spring Boot application, enabling users to perform a range of file operations via a web service. The implementation utilises Java for the core logic, Spring Boot for the construction of the web application, Maven for dependency management, and Postman for testing of the API endpoints. The service allows users to interact with Dropbox, performing tasks such as listing files, retrieving file statistics, and filtering data based on specific criteria.

📘 Table of Contents

• 💡 Introduction
• 🗄️ Data Structure
• 🚀 API Requests
• 📊 Response Examples
• 🔎 Filters
• 📐 UML Diagrams
• 🧪 Tests
• 🛠️ Get Started
• 📚 Framework & Software
• 👨🏻‍💻 Authors

💡 Introduction

This project is a Web Service that allows a client (e.g., Postman) to interact with Dropbox APIs via GET requests. The service enables operations on a specific Dropbox account, such as:

• Displaying all files in JSON format
• Obtaining statistics on the data
• Filtering data based on various parameters
• Obtaining statistics on filtered data

The project uses the Spring Boot framework. You can run the application from Eclipse by selecting "Run as: SpringBoot App," which starts a Tomcat server on port 8080.

🗄️ Data Structure

The data are structured with the following fields:

1. File/folder name
2. File/folder path
3. File extension
4. Last modified date
5. File size
6. Attribute indicating if the file is shared

🚀 API Requests

Type	Route	Function
GET	/data	Returns all files in the Dropbox account as JSON
GET	/stats/dates/mostrecent/{extension}	Returns a DataModel with the most recent file of the specified extension
GET	/stats/dates/leastrecent/{extension}	Returns a DataModel with the least recent file of the specified extension
GET	/stats/size/biggestfile/{extension}	Returns a string with the name and size of the largest file for the specified extension
GET	/stats/size/smallestfile/{extension}	Returns a string with the name and size of the smallest file for the specified extension
GET	/stats/size/higherdim/{size}	Returns the number of files larger than the specified size, grouped by extension
GET	/stats/size/lowerdim/{size}	Returns the number of files smaller than the specified size, grouped by extension
GET	/stats/shared/extension/{extension}	Returns the number of shared files for the specified extension
GET	/stats/shared/folder	Returns the number of shared files in the specified folder, grouped by extension
GET	/filter/type/parameter	Returns the filtered Dropbox data based on the specified criteria

Note: For requests marked with (X), allowed extensions for demonstration purposes are ".pdf", ".xls", ".jpg", ".doc", ".pptx".

📊 Response Examples

GET /data

[
    {
        "tag": "folder",
        "name": "subfolder",
        "extension": "null",
        "id": "id:bzscu_Fx4CUAAAAAAAAAMw",
        "server_modified": "null",
        "size": 0,
        "path": "/OnlyMine/subfolder",
        "shared": false
    },
    {
        "tag": "file",
        "name": "report copy.doc",
        "extension": ".doc",
        "id": "id:bzscu_Fx4CUAAAAAAAAAOQ",
        "server_modified": "2021-12-27T18:21:59Z",
        "size": 102912,
        "path": "/OnlyMine/subfolder/report copy.doc",
        "shared": true
    }
]

GET /stats/dates/mostrecent/.pdf

{
    "year": 2022,
    "month": 1,
    "day": 4,
    "name": "Exercise23.11.pdf"
}

GET /stats/size/biggestfile/.doc

The biggest .doc file is "report copy.doc" with a size of 12,864 kilobytes.

GET /stats/size/higherdim/10000 (same for lowerdim)

Files larger than 10,000 bytes:
7 PDF files
1 Excel document
5 JPG images
1 PowerPoint presentation
3 Word documents

GET /stats/shared/extension/.jpg

The number of .jpg files shared is: 2

GET /stats/shared/folder?path=/Only mine Returns a JSON SharedModel showing the count of shared files by extension in the specified folder, along with the total count.

{
    "tot": "Shared per folder: 1",
    "extension1": ".pdf: 1",
    "extension2": ".xls: 0",
    "extension3": ".jpg: 0",
    "extension4": ".pptx: 0",
    "extension5": ".doc: 0"
}

🔎 Filters

The available filter types are:

• Name: Returns files whose names start with the specified letter.
• Extension: Returns files with the specified extension.
• Date: Returns files last modified on the specified date.
• Path: Returns files containing the specified path segment.
• Size:
  • Bigger: Returns files larger than the specified size.
  • Smaller: Returns files smaller than the specified size.

📐 UML Diagrams

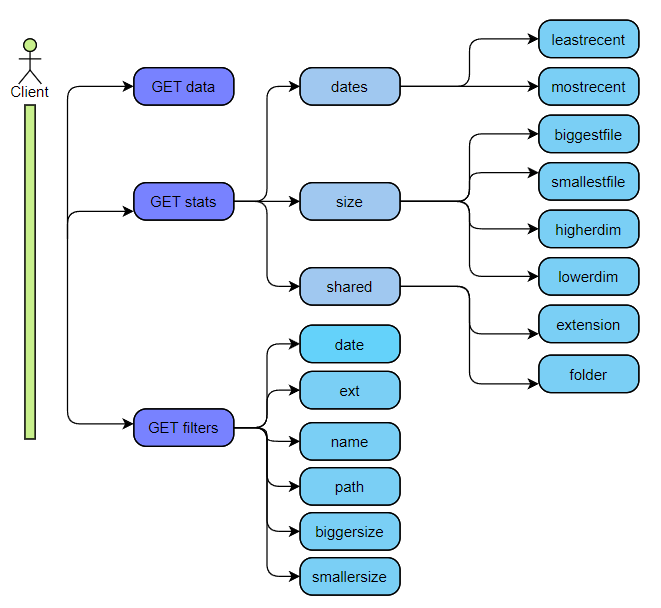

Use Cases:

Packages:

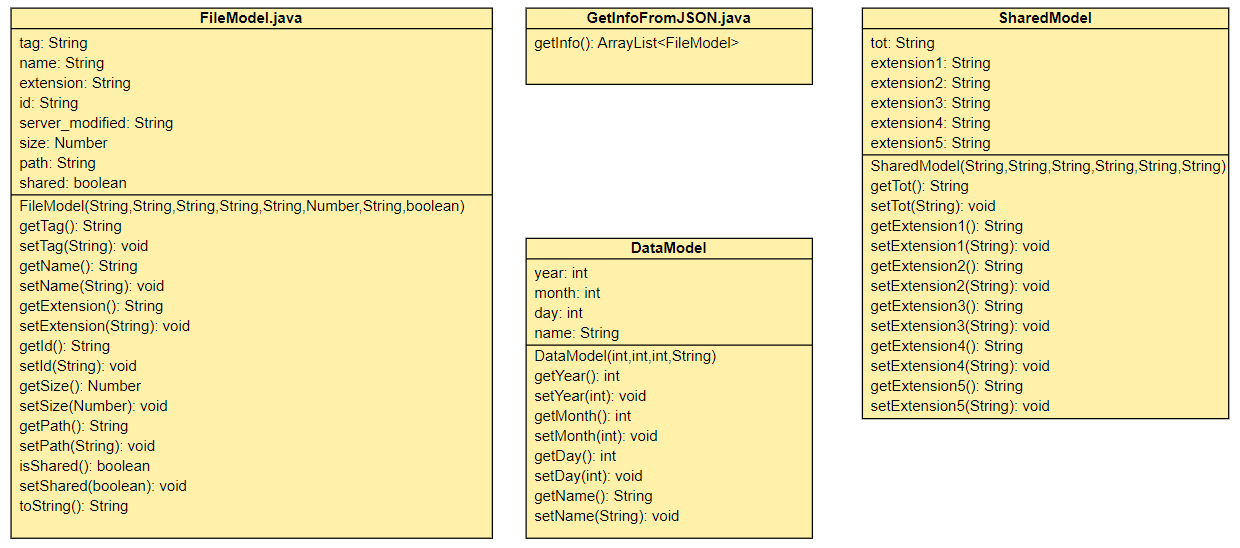

Utility:

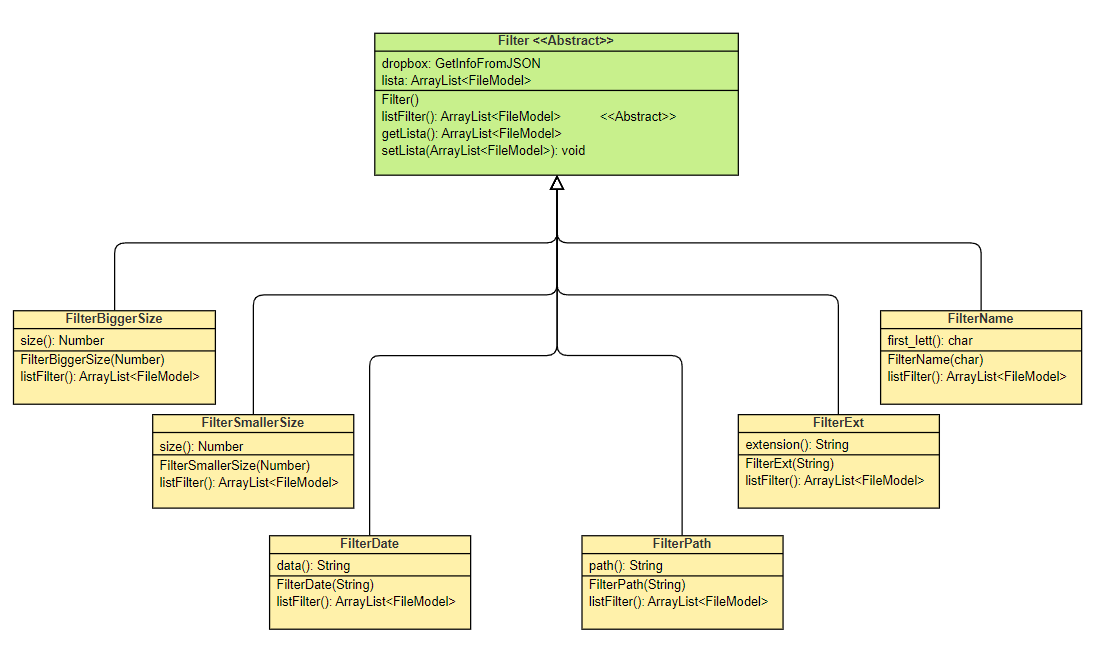

Filters:

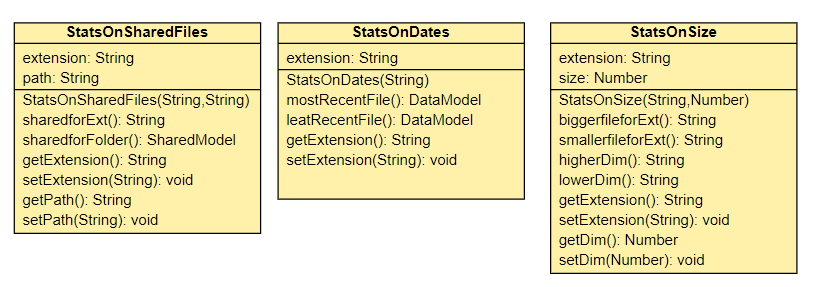

Stats:

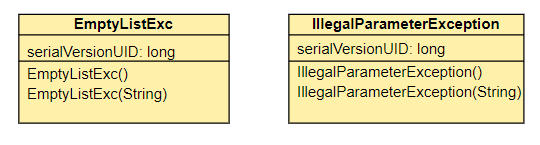

Exceptions:

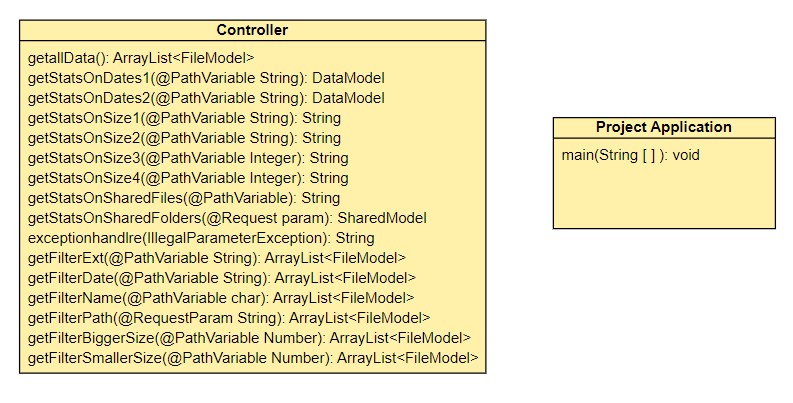

Controller:

Sequences:

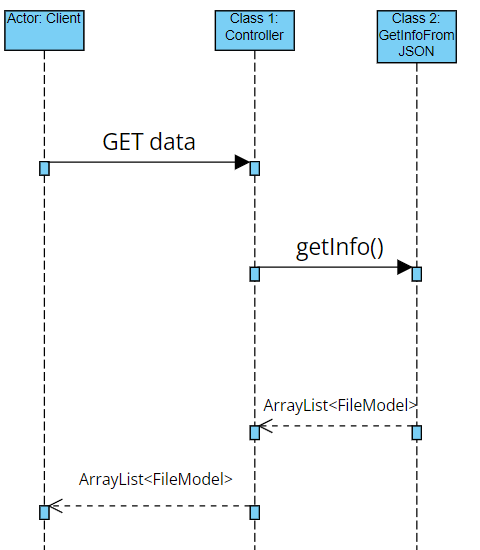

get data

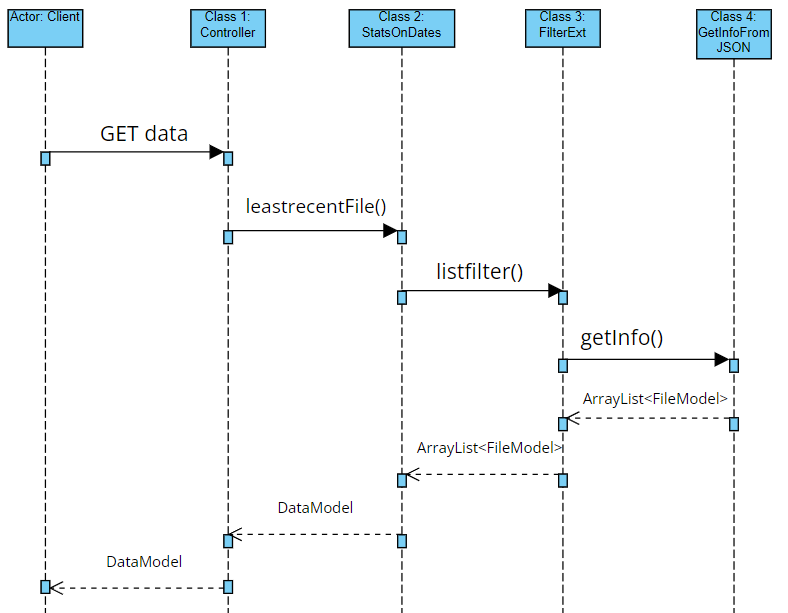

get stats on dates

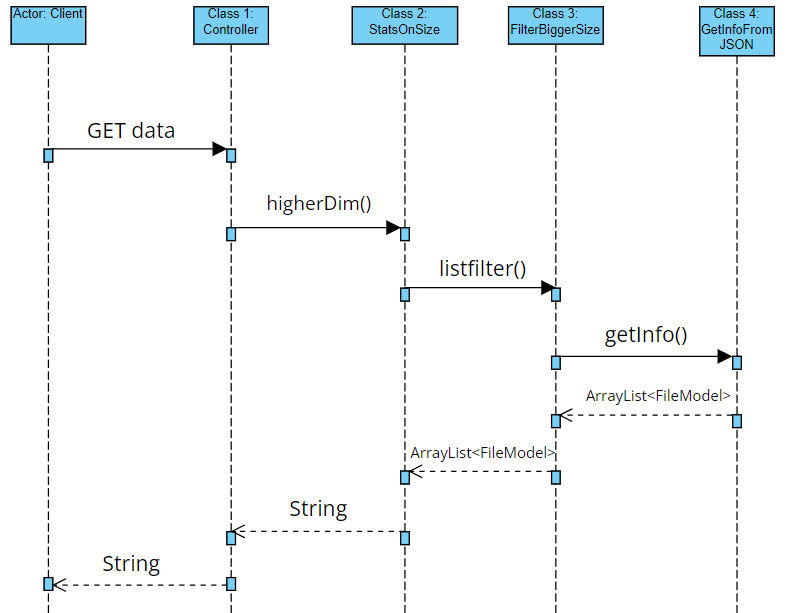

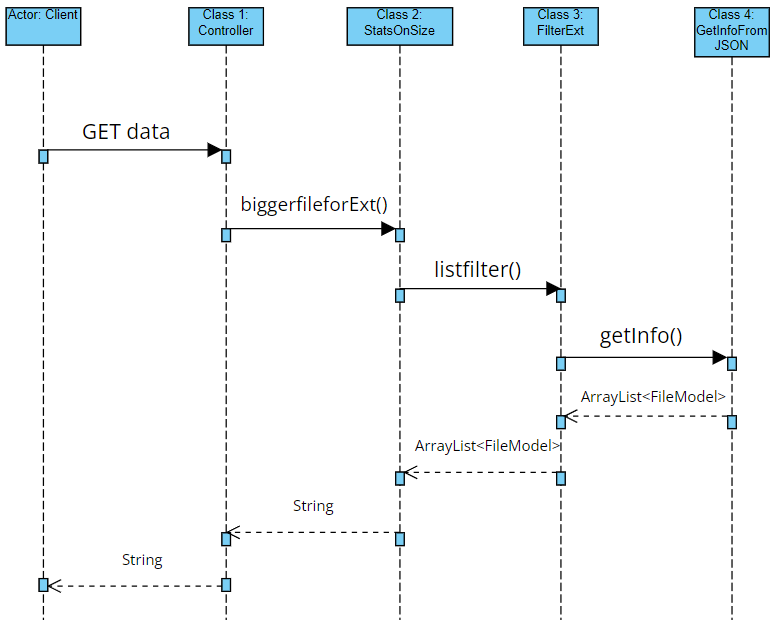

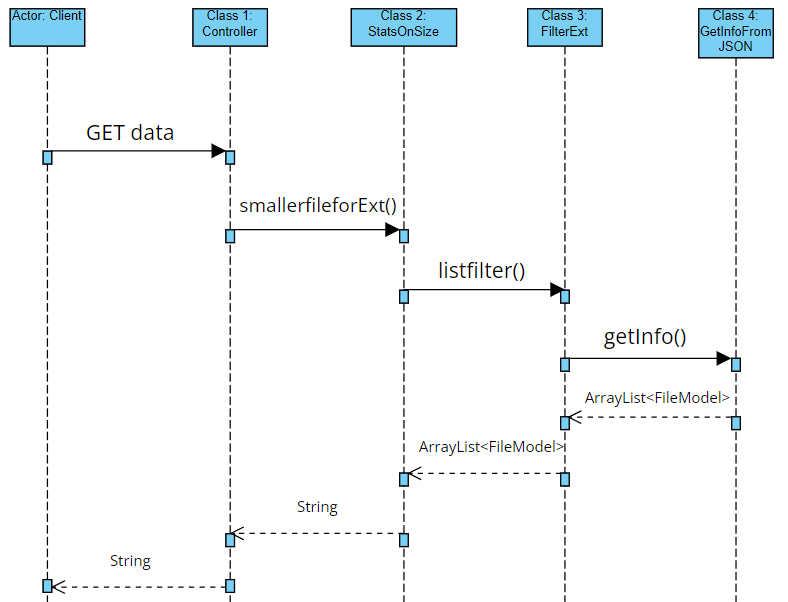

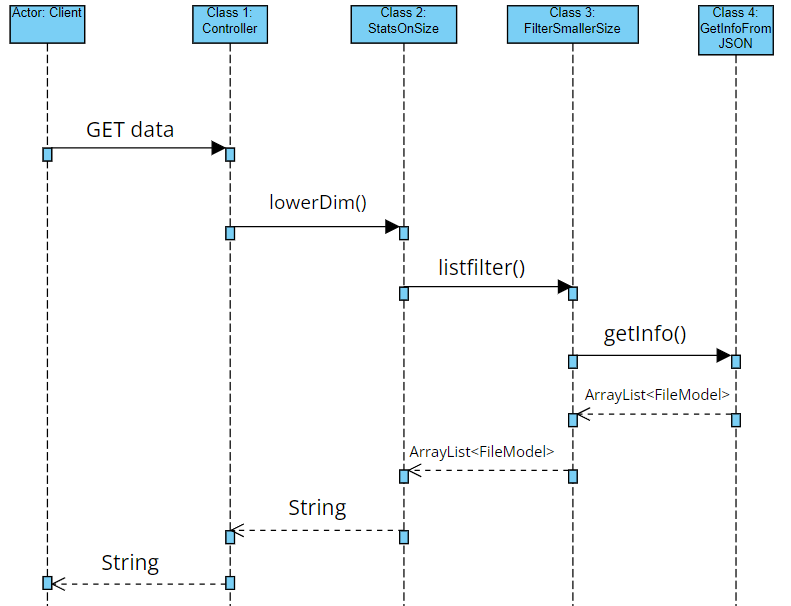

get stats on size

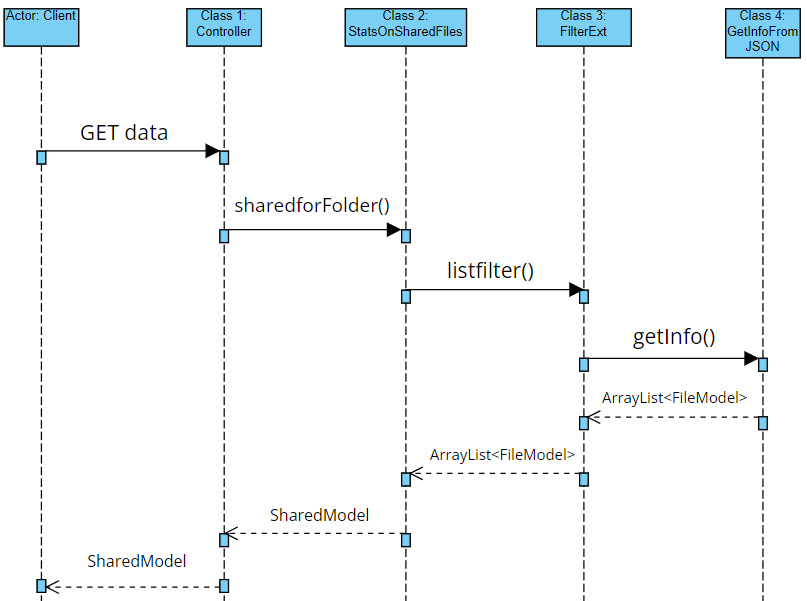

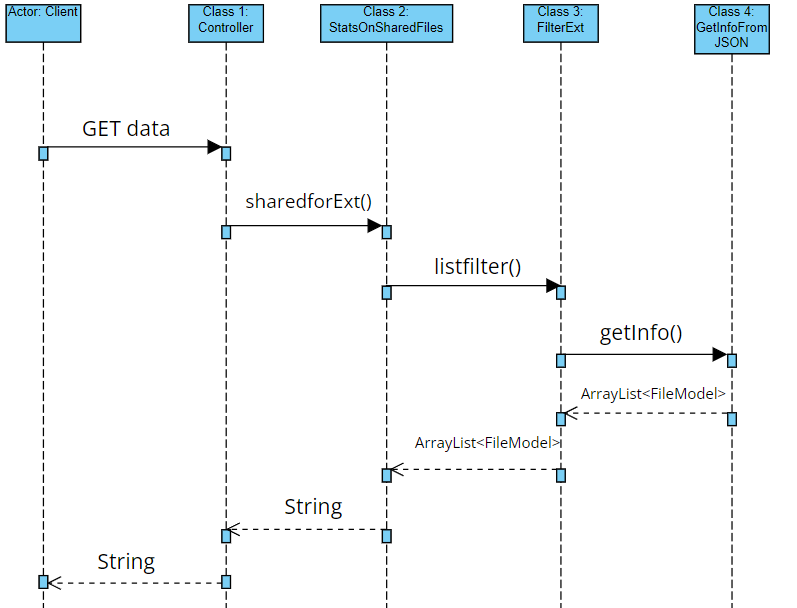

get stats on shared files

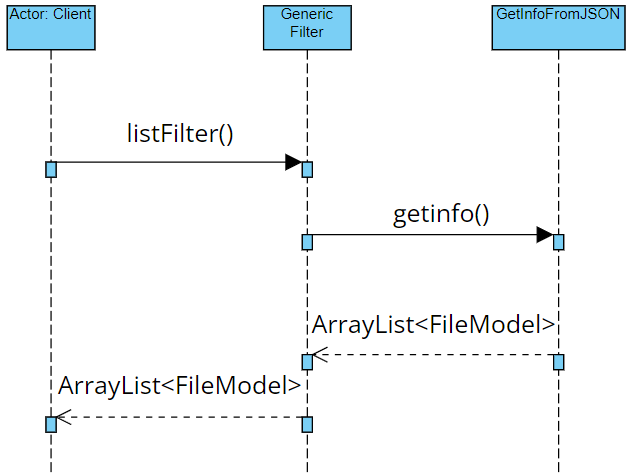

get filters

🧪 Tests

The project includes the following tests:

• Test 1: Checks that the filtered lists are not empty.
• Test 2: Verifies that the generated JSON is not empty.
• Test 3: Ensures there are no discrepancies between the generated JSONs.

🛠️ Get Started

1. Open Eclipse.
2. Launch the application as a Spring Boot App.
3. Open Postman.
4. Send requests to the exposed APIs as listed in the table.

📚 Framework & Software

• jsonsimple: Library used to model JSON files as Java objects.
• Eclipse: Integrated Development Environment (IDE) used for the project.
• Spring (v2.6.1): Framework for Java-based web application development.
• Maven: Build automation tool used for dependency management.
• JUnit: Framework for unit testing.
• Postman: Tool used to make HTTP requests to http://localhost:8080.
• VisualParadigm: Tool for creating UML diagrams.

👨🏻‍💻 Authors

Name	Email	Contribution
Pierandrea Porfiri	porfiripierandrea@gmail.com	50%
Federico Staffolani	fede01staf@gmail.com	50%
