Voice Chatroom (Back-End)

Back-End repo for labs11-intercomApp-BE a/k/a Voice Chatroom.

Table of Contents

• Overview
  • Introduction
  • Mission Statement
• Getting Started
  • Install
    • Dependencies
    • Dev-Dependencies
  • Test Server
  • Development Server - Start
  • Development Server - Continuous Run
  • Production Server
• Environment and Configuration Variables
• Data
  • Database
    • Test Database
    • Development Database
    • Production Database
  • Database Tables
    • Schema
    • Tables
      • Users
      • Groups
      • Group Activities
      • Group Owners
      • Group Members
      • Group Invitees
      • Group Call Participants
• API
  • Endpoints and Routers
    • Users
    • Groups
    • Voice
    • Billing
    • Image Upload
  • Third Party APIs

Overview

Back-end Node and Express server for a React front-end application.

Introduction

Using your phone and headphones, you will have the ability to create voice chatrooms groups, talk directly into your group’s ears, and hear others talk into your ears. You can manage the group, see who is in the group and start up a voice call.

Mission Statement

Our mission is to assist a wide variety of users ranging from those who may be hearing impaired or elderly to anyone who finds themselves as a group having difficulty conversing with others with overbearing background noise. We provide our users to opportunity to easily create and join personal groups and initiate voice chats within those groups to keep a clear communication link with their family and friends. Don't lose your voice, find your Voice Chatroom!

Getting Started

Package Manager: yarn

• Clone this repository and change directory into the root folder.

Install

yarn install

Dependencies

body-parser cloudinary cors datauri dotenv express heroku knex multer ngrok node pg sqlite3 stripe twilio

Dev-Dependencies

cross-env jest nodemon supertest

Test Server

yarn test

Server testing completed with jest and supertest.

Development Server (Start)

yarn start

Configured with node to start server. Any changes made to server will require a stop and re-start.

• Test and run development server in program such as Postman
• To confirm running, make a GET/ request to: localhost:3300/
• Will recieve confirmation message: Hello World!

Development Server (Continuous Run)

yarn server

Configured with nodemon to continuously run server. If no local .env file set with PORT variable, will default to run on port 3300.

• Test and run development server in program such as Postman
• To confirm running, make a GET/ request to: localhost:3300/
• Will recieve confirmation message: Hello World!

Production Server

Our production server is deployed to Heroku using the heroku/nodejs buildpack.

Environment and Configuration Variables

Environments and variables set within local .env file for testing and development. For production variables are set within the Heroku's application Config Vars settings.

• Local/Production: DATABASE_URL DB_ENV
• Cloudinary: CLOUDINARY_API_KEY CLOUDINARY_API_NAME CLOUDINARY_API_SECRET
• Stripe: SK_TEST
• Twilio: ACCOUNT_SID API_KEY API_KEY_SECRET APP_SID AUTH_TOKEN CALLER_ID PUSH_CREDENTIAL_SID SERVICE_SID

Data

Database configured with knex. Knex configuration file, migrations and seeds located within data directory.

Database

Test Database

Testing uses sqlite3 database. yarn test will automatically set environment to testing

• Environment: testing
• Connect migrations to testing with command line: knex migrate:latest --env=testing.
• Connect seed to testing with command line: knex seed:run --env=testing.

Development Database

Development uses sqlite3 database. If no local .env file set with DB_ENV variable, will default to run knex environment of development.

• Environment: development
• Connect migrations to development with command line: knex migrate:latest.
• Connect seed to development with command line: knex seed:run.

Production Database

Production deployed to Heroku and uses Heroku Postgress database add-on.

• Environment: production
• Connect migrations to production with command line: npx heroku run knex migrate:latest -a <<app_name>>.
• Seeds not connected to production database.

Database Tables

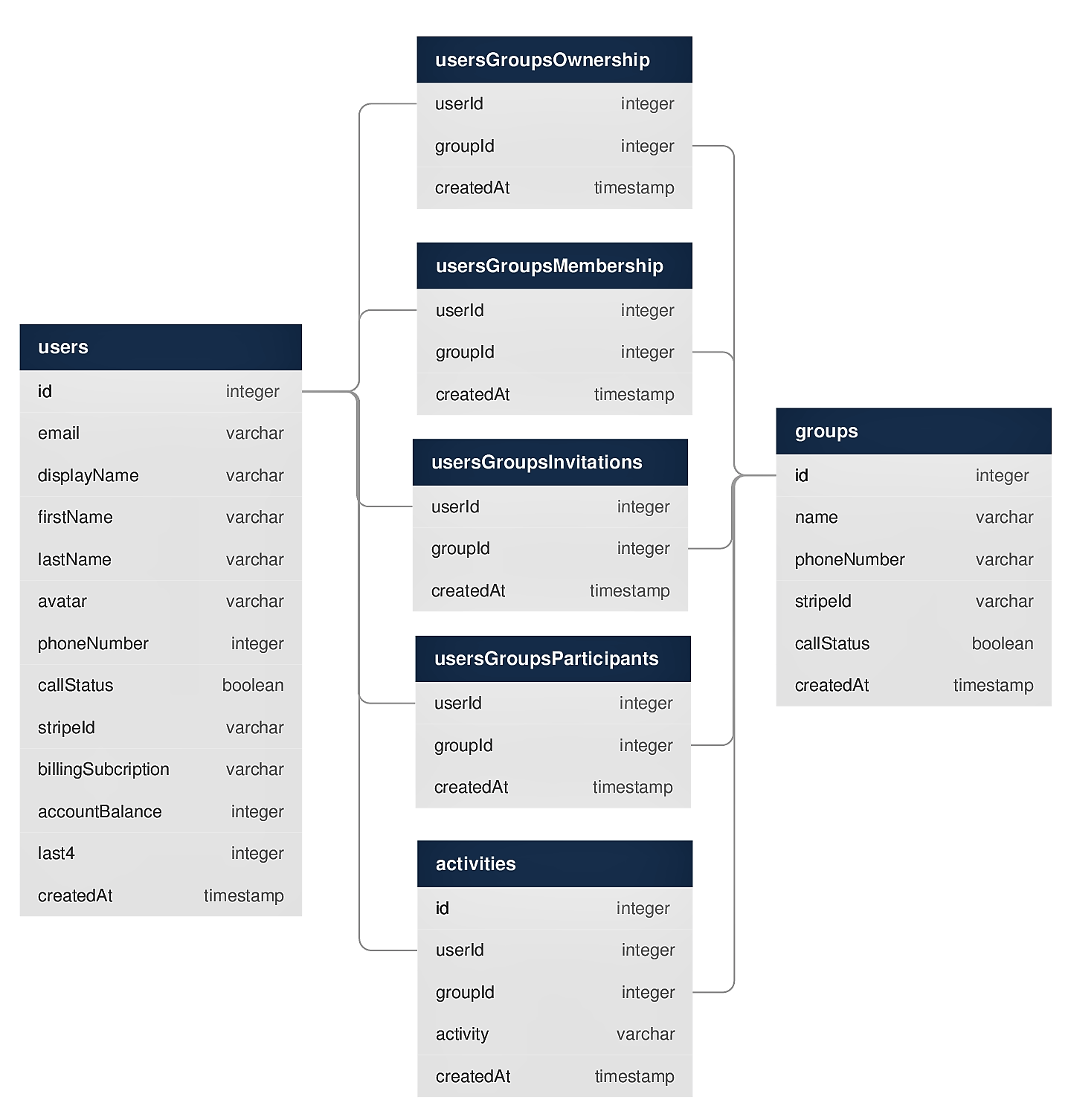

Schema

Tables

• PK = Primary Key
• FK = Foreign Key
• FK Ref = Foreign Key Reference (<<table>>.<<row>>)

Users Table

Table: users

Name	Data type	PK	Unique	Not NULL	Default To
id	integer	+	+	+	-
email	varchar(128)	-	+	+	-
displayName	varchar(128)	-	-	+	-
firstName	varchar(128)	-	-	-	-
lastName	varchar(128)	-	-	-	-
avatar	varchar(256)	-	-	-	null
phoneNumber	integer(9)	-	-	-	-
callStatus	boolean	-	-	+	false
stripeId	varchar(128)	-	-	-	null
billingSubcription	varchar(128)	-	-	+	'free'
accountBalance	decimal(4,2)	-	-	-	0
last4	varchar(4)	-	-	-	null
createdAt	timestamp	-	-	-	knex.fn(now)

Groups Table

Table: groups

Name	Data type	PK	Unique	Not NULL	Default To
id	integer	+	+	+	-
name	varchar(128)	-	-	+	-
phoneNumber	varchar(12)	-	-	-	-
callStatus	boolean	-	-	-	false
createdAt	timestamp	-	-	-	knex.fn(now)

Group Activities Table

Table: activities

Name	Data type	PK	Unique	Not NULL	Default To	FK	FK Ref	Update	Delete
id	integer	+	+	+	-	-	-	-	-
userId	integer	-	-	+	-	+	users.id	CASCADE	CASCADE
groupId	integer	-	-	+	-	+	groups.id	CASCADE	CASCADE
activity	varchar(128)	-	-	+	-	-	-	-	-
createdAt	timestamp	-	-	-	knex.fn(now)	-	-	-	-

Group Owners Table

Table: usersGroupsOwnership

Name	Data type	Default To	FK	FK Ref	Delete
userId	integer	-	+	users.id	CASCADE
groupId	integer	-	+	groups.id	CASCADE
createdAt	timestamp	knex.fn(now)	-	-	-

Group Members Table

Table: usersGroupsMembership

Name	Data type	Default To	FK	FK Ref	Delete
userId	integer	-	+	users.id	CASCADE
groupId	integer	-	+	groups.id	CASCADE
createdAt	timestamp	knex.fn(now)	-	-	-

Group Invitees Table

Table: usersGroupsInvitations

Name	Data type	Default To	FK	FK Ref	Delete
userId	integer	-	+	users.id	CASCADE
groupId	integer	-	+	groups.id	CASCADE
createdAt	timestamp	knex.fn(now)	-	-	-

Group Call Participants Table

Table: usersGroupsParticipants

Name	Data type	Default To	FK	FK Ref	Delete
userId	integer	-	+	users.id	CASCADE
groupId	integer	-	+	groups.id	CASCADE
createdAt	timestamp	knex.fn(now)	-	-	-

API

All server routers and models located within api directory.

Endpoints and Routers

Server and routers configured with express.

Main Routers	Endpoint
Users	/api/users
Groups	/api/groups
Voice	/api/voice
Billing	/api/billing
Image Upload	/api/upload

Users Router

User routers and models located within api/users directory.

Endpoint	Method	Request	Response
/api/users	GET		List of all users
/api/users	POST	Send User Info	Adds user to database (if new). Returns user's ID & information.
/api/users/:id	GET		All user information by specified ID
/api/users/:id	PUT	Send Needed Changes	Updates user and returns all user information by specified ID
/api/users/:id	DELETE		Deletes all user's activities, then Deletes user. Returns count.
/api/users/:id/detailed	GET		All user information by specified ID with user's groups owned, groups belonged to, and groups invited to. Each group returned also returns that group's information with call participants, activities, owners, members, and invitees of each group.
/api/users/:id/accountBalance	GET		User's account balance information
/api/users/:id/accountBalance	PUT	Send New Balance	Updates user's account balance and returns user
/api/users/:id/last4	GET		User's last four digits of credit card
/api/users/:id/last4	PUT	Send New Card Info	Updates user's last four digits of credit card and returns user
/api/users/:id/groupsOwned	GET		List of all groups that user owns
/api/users/:id/groupsBelongedTo	GET		List of all groups that user is a member of
/api/users/:id/groupsInvitedTo	GET		List of all groups that user is invited to

Groups Router

Groups routers and models located within api/groups directory.

Endpoint	Method	Request	Response
/api/groups	GET		List of all groups
/api/groups	POST	Send Group Info	Adds group to database. Returns group ID & information.
/api/groups/:id	GET		All group information by specified ID
/api/groups/:id	PUT	Send Needed Changes	Updates group and returns all group information by specified ID
/api/groups/:id	DELETE		Deletes group by specified ID. Returns count.
/api/groups/:id/activities	GET		List of all activities for specified group ID
/api/groups/:id/activities	POST	Send Activity Info	Adds activity to database. Returns list of all group activities.
/api/groups/:id/callParticipants	GET		List of all call participants for specified group ID
/api/groups/:id/callParticipants	POST	Send User Info	Adds participant to database. Returns list of call participants.
/api/groups/:id/callParticipants	DELETE		Deletes all call participants for specified group. Returns count.
/api/groups/:id/callParticipants/:id	DELETE		Deletes call participant by specified user ID and group ID. Returns updated list of call participants for group.
/api/groups/:id/callStatus	GET		Group's current call status
/api/groups/:id/callStatus	PUT	Send New Call Status	Updates group call status and returns all group information
/api/groups/:id/groupOwners	GET		List of all group owners
/api/groups/:id/groupOwners	POST	Send User Info	Adds group owner to database. Returns list of group owners.
/api/groups/:id/groupOwners/detailed	GET		List of all group owners with detailed user information
/api/groups/:id/groupOwners/:id	DELETE		Deletes group owner by specified user ID and group ID. Returns updated list of group owners.
/api/groups/:id/groupMembers	GET		List of all group members
/api/groups/:id/groupMembers	POST	Send User Info	Adds group member to database. Returns list of group members.
/api/groups/:id/groupMembers/detailed	GET		List of all group members with detailed user information
/api/groups/:id/groupMembers/:id	DELETE		Deletes group member by specified user ID and group ID. Returns updated list of group members.
/api/groups/:id/groupInvitees	GET		List of all group invitees
/api/groups/:id/groupInvitees	POST	Send User Info	Adds group invitee to database. Returns list of group invitees.
/api/groups/:id/groupInvitees/detailed	GET		List of all group invitees with detailed user information
/api/groups/:id/groupInvitees/:id	DELETE		Deletes group invitee by specified user ID and group ID. Returns updated list of group invitees.

Voice Router

Voice router, model and handler functions located within api/voice directory. Voice handler functions implemented with Twilio, a third-party communications API.

Endpoint	Method	Response
/api/voice/accessToken	GET	Validates a user with Twilio API to generate an Access Token for user to make or join calls.
/api/voice/makeCall	POST	Retrieves the group ID that a user is attempting to chat with and initiates the process to start or join the call.
/api/voice/registerBinding	POST	Generates device-specific address Twilio will use to send notifications
/api/voice/sendNotification	POST	Sends notiifications to users

Billing Router

Voice router and handler functions located within api/billing directory. Handler functions implemented with Stripe, a third-party billing API.

Endpoint	Method	Request	Response
/api/billing/addMoney	POST	Send User ID and Amount to Add	Adds charge to user's Stripe account, updates user's account balance in database. Returns updated account balance.
/api/billing/allTwilioCharges	GET		Retrieves total Twilio charges in our account
/api/billing/attachSourceToCustomer	POST	Send User Stripe ID and Source ID	Attaches credit card to user's Stripe account
/api/billing/createCharge	POST	Send User Stripe ID, Source ID, and Amount to Add	Adds charge to user's Stripe account. Returns Stripe details as to charge.
/api/billing/groupTwilioCharges	POST	Send Group ID	Retrieves total Twilio charges for sepcified group
/api/billing/retrieveCustomerDefaultSource	POST	Send User Stripe ID	Retrieves user's Stripe source and credit card information
/api/billing/updateCreditCard	POST	Send User ID and Source ID	Updates database with user's new source ID and credit card information. Returns updated information.
/api/billing/updateDefaultSource	POST	Send User Stripe ID and Source ID	Updates user's Stripe account with nre source and credit card information. Returns updated information.
/api/billing/userStripeCharges	POST	Send User Stripe ID	Retrives total charges on user's Stripe account

Image Upload Router

Image upload router and handler functions located within api/upload directory. Handler functions implemented with Cloudinary, a third-party cloud-based image management application.

Endpoint	Method	Request	Response
/api/upload	POST	Send Image File	Uploads image to Cloudinary. Returns image's url.

Third Party APIs

• Cloudinary: Used to store user profile images.
• Stripe: Used for billing implementation.
• Twilio: Used for voice chat implementation.
