Ocala is an assembler for Z80 / 6502.
MSX1 sprite32:

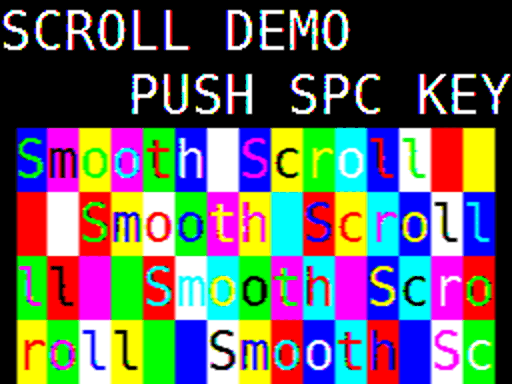

MSX2 scroll:
- Modules and namespaces
- Flexible link methods
- Macros and inline procedures
- Controll flows like if/loop
- Infix notation for machine language instructions
- MSX BIOS functions library
Hello world for MSX:
// Specify the target CPU.
arch z80
// Include another file.
include "msx.oc"
// Specify the link method.
msx:link-as-rom main _
// Define the module.
module main {
// Define the procedure.
proc main() {
// Define message string data. This will be placed in the rodata section.
data message = byte [ "Hello, world!" ] : rodata
// Initialize the SP register. Same as "LD SP, F380h."
SP <- msx:STACK_ADDR
// Initialize the screen as 32x24 mode using BIOS.
msx:init32(!)
// Transfer data to the screen using BIOS.
BC@sizeof(message) . DE@msx:t32nam(10 12) . HL@message . msx:ldirvm(BC DE HL => !)
// The main loop. Do nothing.
never-return loop { msx:wait }
}
}
Output assembly list:
__ARCH__ = "z80"
- 4000 .org 16384
000000 4000[8] 41 42 10 40 00 00 00 00 .byte 65, 66, 16, 64, 0, 0, 0, 0
000008 4008[8] 00 00 00 00 00 00 00 00 .byte 0, 0, 0, 0, 0, 0, 0, 0
- 4010 main:main:
000010 4010[3] 31 80 f3 LD SP, msx:STACK_ADDR
000013 4013[3] cd 6f 00 CALL msx:init32
000016 4016[3] 01 0d 00 LD BC, sizeof(.message.#984)
000019 4019[3] 11 8a 19 LD DE, msx:t32nam(10 12)
00001c 401c[3] 21 26 40 LD HL, .message.#984
00001f 401f[3] cd 5c 00 CALL msx:ldirvm
- 4022 .beg.G1.#988:
000022 4022[1] 76 HALT
000023 4023[3] c3 22 40 JP .beg.G1.#988
- 4026 .align 2 ; (.defb 0)
- 4026 .message.#984:
000026 4026[8] 48 65 6c 6c 6f 2c 20 77 .byte "Hello, world!"
:[5] 6f 72 6c 64 21
- c000 .org 49152
Download the archive of latest version from the releases page. Then extract all files from the archive.
To verify your installation, try below.
$ ./ocala/bin/ocala -h
And make a symbolic link to the binary file if necessary.
$ ln -nfs "$(realpath ./ocala/bin/ocala)" ~/.local/bin/ocala
Clone this repository. Then execute below.
$ make install prefix=$HOME/.local
Usage: ocala [options] file
Options:
-D value
Define the symbol
-I value
Add the directory to the include path
-L string
Specify the list file name
-V Display the version information
-l Generate a list file
-o string
Specify the output file name
-t string
Specify the target arch
MIT
