Setup
Congrats you installed the processor, but now it`s time to configure it.
Navigate to the IP of the service by going to serviceip:3859 and register a new user!
Login into the Webhook-Processor and navigate to the Settings
Endpoint URL
Enter the Endpoint URL This is the IP of the Rekor Scout Agent Webserver. The default port is 8355. This needs to be enabled in the alprd.conf on the Rekor Scout Agent.
Windows
How to change the alprd.conf
Confirm the following are enabled and configured:
web_server_enabled = 1
websockets_enabled = 1
web_server_debug = 1
web_server_port = 8355
Docker
How to change the alprd.conf
Navigate to the host path where you are storing the alprd.conf and use your favorite text editor to confirm the web server is enabled.
web_server_enabled = 1
websockets_enabled = 1
web_server_debug = 1
web_server_port = 8355

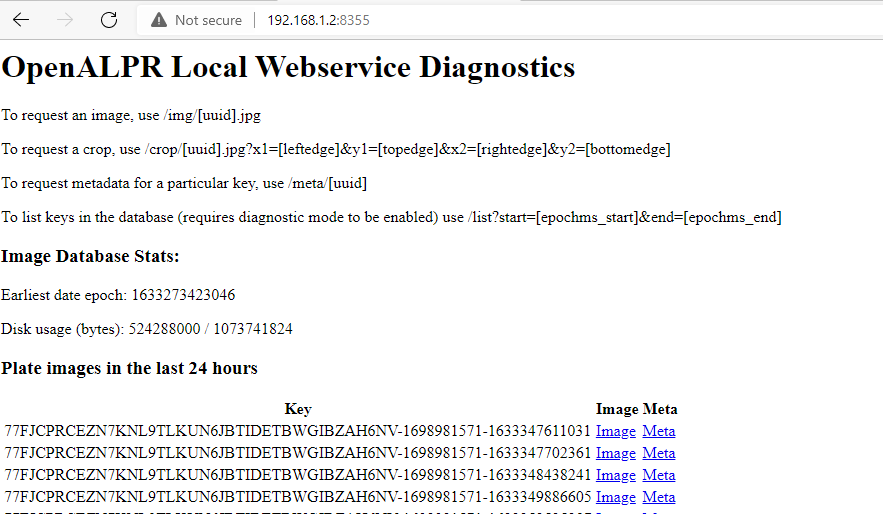

Before moving any further, make sure your webserver is working by navigating to it IP:8355 It's working when it looks like this below:
Hostname

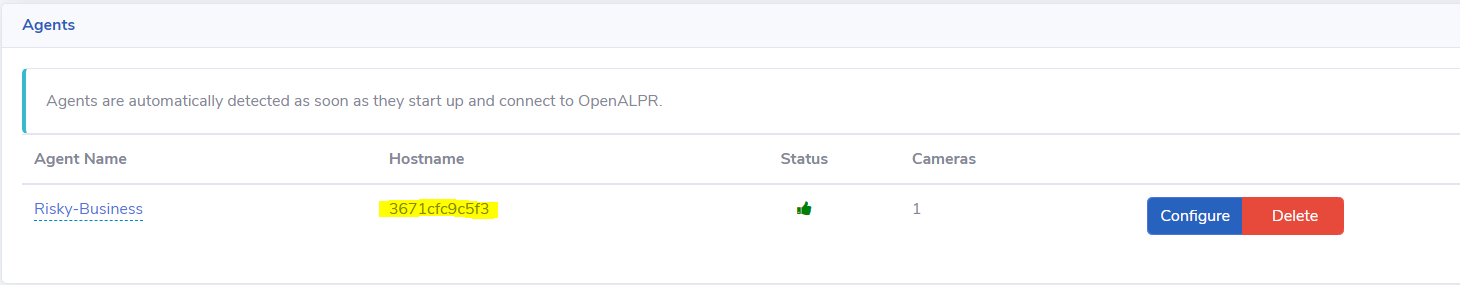

Navigate to https://cloud.openalpr.com/ and from there on the bottom left click
agents. This should pull up a page like the one below:
copy and paste the hostname into the Webhook-Processor.
UID
Navigate to https://cloud.openalpr.com/ and on the left side-bar click Billing and Licenses. Then copy and paste the UID into the processor.
OpenALPR Web Server API Key

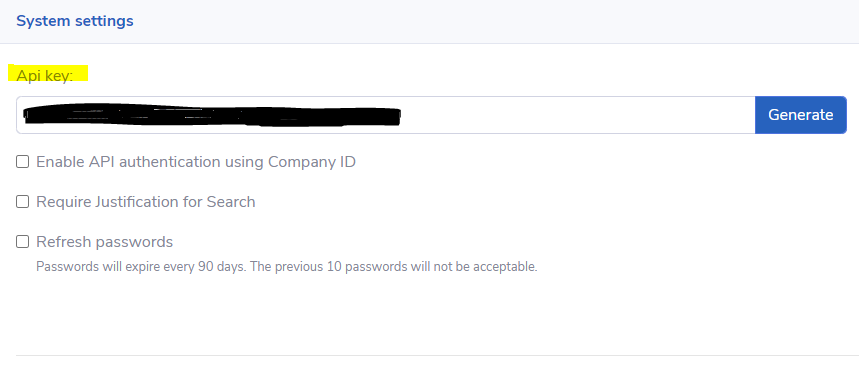

Navigate to the top right and click the blue profile circle icon and then click Account Settings. copy and paste the API Key into the processor.
OpenALPR Web Server URL
https://cloud.openalpr.com
Version

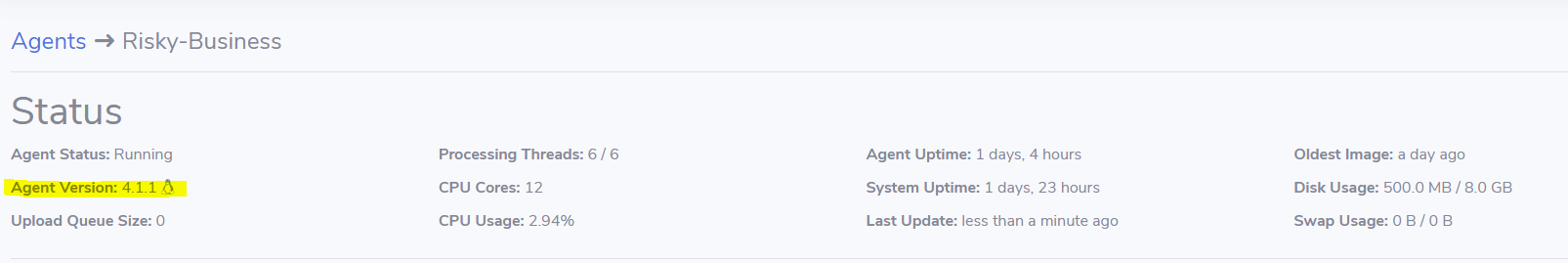

Navigate to agents again and press configure. This should pull up a page that looks like the image below. copy and paste the version into the processor.
Latitude & Longitude
Use a website like This and input the coordinates into the processor.
Once everything is configured, press Save and Start Scrape
