Project: Data Modeling and ETL with Postgres and Python

Project Description

A compagny that has been collecting songs' data and users activity wants an efficient model to store and analyze the data. The data currently resides in folders in JSON format. This project consists of creating a database and build an ETL pipeline to store the data. This will help the analytics to analyze and derive insights from data.

Data description

There are two sources of dataset, the Song Dataset and the Log Dataset .

The Song Dataset

This is a collection of JSON data that store songs data. The files are partitioned by the three letters of of each song's track ID. These are two examples:

• song_data/A/B/C/TRABCEI128F424C983.json
• song_data/A/A/B/TRAABJL12903CDCF1A.json

Each file is structured as:

{"num_songs": 1, "artist_id": "ARJIE2Y1187B994AB7", "artist_latitude": null, "artist_longitude": null, "artist_location": "", "artist_name": "Line Renaud", "song_id": "SOUPIRU12A6D4FA1E1", "title": "Der Kleine Dompfaff", "duration": 152.92036, "year": 0}

Log Dataset

The second dataset is a set of JSON log files generated by an event similator base of songs dataset above. These files simulate activity logs partitioned by year and month as we can see below:

• log_data/2018/11/2018-11-12-events.json
• log_data/2018/11/2018-11-13-events.json

Choice of Data Model

For this project, we will building a star model with fact and dimension tables. This schema is analytic focus as all dimensions tables are one join away from that fact tables that easier queries retrieval. Here is tables description:

Fact Table

1 - songplays - records in log data associated with song plays i.e. records with page NextSong
     songplay_id, start_time, user_id, level, song_id, artist_id, session_id, location, user_agent

Dimension Tables

2 - users - users in the app
     user_id, first_name, last_name, gender, level
3 - songs - songs in music database
     song_id, title, artist_id, year, duration
4- artists - artists in music database
    artist_id, name, location, latitude, longitude
5- time - timestamps of records in songplays broken down into specific units
    start_time, hour, day, week, month, year, weekday

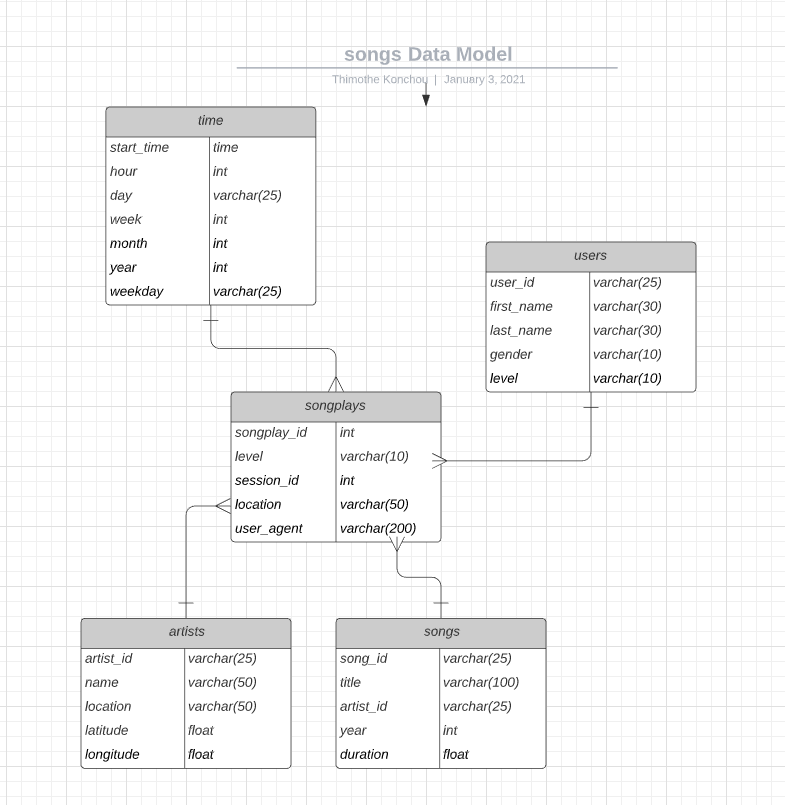

Star Schema Design

Project Structure

The project has multiple files, here is the description:

1- test.ipynb : displays the first few rows of each table to let you check your database.

2- create_tables.py : drops and creates your tables. You run this file to reset your tables before each time you run your ETL scripts.

3- etl.ipynb : reads and processes a single file from song_data and log_data and loads the data into your tables. This notebook contains detailed instructions on the ETL process for each of the tables.

4 - etl.py : reads and processes files from song_data and log_data and loads them into your tables. You can fill this out based on your work in the ETL notebook.

5 - sql_queries.py : contains all your sql queries, and is imported into the last three files above.

Installation

• Install python 3.8
• install postgres
• Clone the current repository
• open command line and move to the repository folder
• run the create_tables.py file to create the database as well as all tables
• run the etl.py file to read, extract, transform and load data to different tables
